2.15. Geo Plugin

The Geo plugin is an add-on package to Trisul. It enhances the base Trisul functionality by adding

  1. A Country Counter group – for country wise traffic metering
  2. A ASN Counter Group – for Autonomous System Number wise metering
  3. A CITY Counter Group – for City/Region wise metering.
  4. A Prefix Counter Group – for IP Prefix (AS BGP blocks) wise metering
  5. BGP metrics for ISP applications

The plugin can connect to MaxMind and IP2LOC online databases with your APIKEY, periodically download, and integrate Geo Metrics from them into Trisul.

2.15.1 Samples

Here is a screenshot to give you an idea of what functionality is added by this plugin.

By ASN
Traffic by ASN

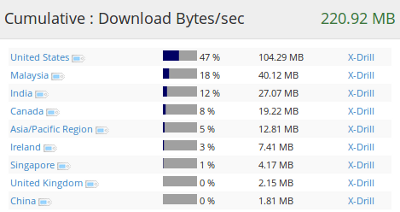

Traffic by country
Traffic by country

2.15.2 Setup

Installation

This plugin is distributed as a RPM / DEB package. Follow instructions in the Downloads page to install the trisul-geo package

Starting

Once installed, the plugin will become effective the next time you restart Trisul Probe.

2.15.3 Database used and API Key

In order to work accurately, this plugin needs an upto-date Geo location database. We currently support geo location databases from Maxmind The basic install includes an out of data database in CSV format. Once install they are automatically updated weekly.

To automatically download databases you need to sign up with Maxmind for an API Key. Then put that key into the feed configuration file shown below.

Use cfgedit to edit the config settings. Select the Trisul Geo option in the menu.

Once installed Trisul will automatically keep the databases updated at 2AM everyday. See the Frequency parameter in the config file.

The main parameters you may be interested to edit are :

Parameter Default Note
ReloadListSeconds 3600 Trisul checks for new files every so many seconds.
SampleRate 32 In packet mode, sample rate. Lookup Geo database only once every so many packets
MeterCountry TRUE Enable Country Wise metering
MeterASN TRUE Enable ASN Wise metering
MeterCity FALSE Enable City/Location metering – This will result in about 500MB RAM extra usage, disabled by default
MeterPrefix TRUE Enable Network Prefixs (AS numbers as found in BGP)
MeterASPATH FALSE Meter AS Path based on the BGP Peering established by Trisul with the routers
Feature used in ISP environments
HomeASNumbers Enter the ASNumber of the Trisul customer. This is required to calculate Upload/Download direction for the ASNumber Counter group
Feature used in ISP environments
DebugLevel 0 Set this to 1 to print every IP lookup
BGPRibsPath /usr/local/var/ramdisk The location where the Trisul BGP Route receiver process will save the routing database.
Feature used in ISP environments
AddFlowEdges true Add flow edges from Country/Prefix/ASNumber.
DirectionalMode true This impacts the ASNumber counter group. If DirectionalMode is set to TRUE, external IPs are checked for ASNumber match in the geo databases. This is appropriate for enterprise and non-transit ISPs. When DirectionalMode is set to FALSE, then both IPs are matched against the ASN databases

2.15.4 Editing the config file

The Geo.xml contains config parameters as well as global ‘feed’ items. The config items shown in the above table are updated in the usual manner. Using the cfg.edit tool on the probe

The feeds are updated on the hub node as shown below.

2.15.5 How updates work

Trisul is a distributed system. The Geo.xml specifies feeds which are downloaded only once on the Hub node by a background cron process. The hub then pushes these feeds to all probes.

2.15.6 Editing feed updates

To change the feed updates or to remove feeds, edit the file in the feeds directory on the HUB nodes.

  1. Logon to the hub node
  2. Go to the feeds directory /usr/local/var/lib/trisul-config/domain0/allcontexts/feeds/
  3. Each plugin is represented by a GUID. The Geo plugin is feed-99...
  4. cd to the feed-99.. directory
  5. Open the rules.xml file

It contains feed source lines like this

Enter your Maxmind APIKEY in the provided space YOURLICENSEKEYHERE. For ISP customers, enter your AS Number in the provided space as well.


  <Source>
    <URL>https://download.maxmind.com/app/geoip_download?edition_id=GeoLite2-Country-CSV&amp;license_key=YOURLICENSEKEYHERE&amp;suffix=zip</URL>
    <Target>GeoLite2-Country-CSV.zip</Target>
  </Source>
  <Source>
    <URL>https://download.maxmind.com/app/geoip_download?edition_id=GeoLite2-ASN-CSV&amp;license_key=YOURLICENSEKEYHERE&amp;suffix=zip</URL>
    <Target>GeoLite2-ASN-CSV.zip</Target>
  </Source>

  1. To disable a feed remove the <Source> block or change its name to something like <Source_Disabled>
  2. To enable a feed, enter a new Source block or uncomment any Source_Disabled block
  3. Currently only the feeds mentioned in the file are supported.

2.15.7 Commercial

FOr high accuracy it is reccommended to purchase a license from https://www.maxmind.com for the following GeoLite2 products.

  1. GeoLite2 Country
  2. GeoLite2 ASN
  3. GeoLite2 City
Please contact the list vendor directly for a subscription.

2.15.8 License

The following statement


This product includes GeoLite2 data created by MaxMind, available from
<a href="https://www.maxmind.com">https://www.maxmind.com</a>.
